Vehicle Detection Systems
Vehicle detection uses a supported camera, sensor or analytics platform to identify vehicle-related activity within a defined view or zone. It can help a logistics, facilities or security team become aware of a vehicle arriving, crossing a virtual boundary, entering a configured area or remaining somewhere of operational interest.
The event must be linked to a clear site rule and an appropriate response.
Video unavailable. Follow the illustrated workflow below.
THE EVENT JOURNEY
Vehicle route → zone rule → logistics review
Enter the monitored route

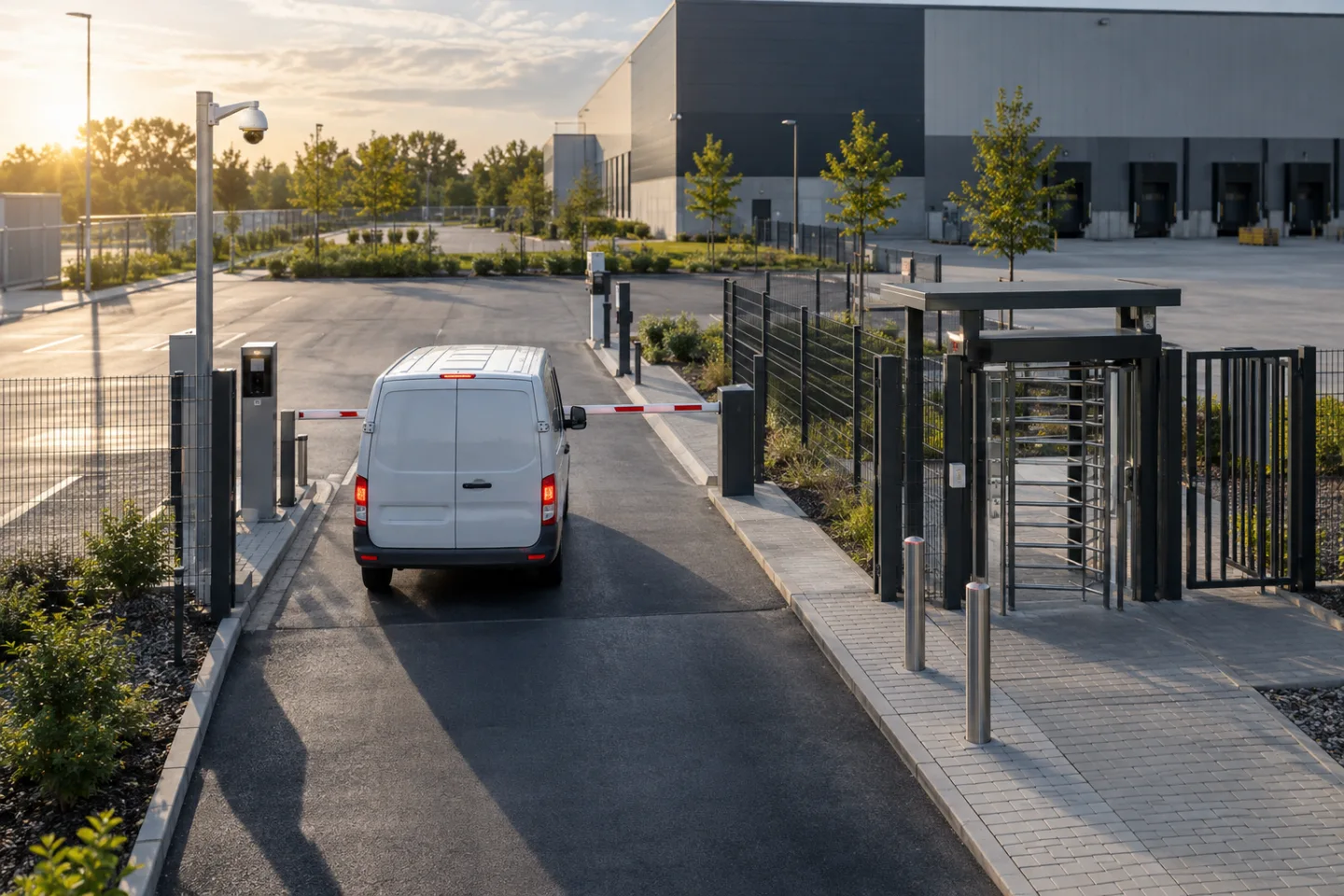

A vehicle approaches a gate, loading bay or defined yard zone.
Classify and evaluate
Supported analytics applies vehicle, direction, presence or dwell rules appropriate to the scene.
Inform operations
The event reaches a gatehouse or logistics team through the agreed monitoring and alert interfaces.
Review the movement
Staff use the context to coordinate access or yard operations. Analytics is not a collision-avoidance guarantee.
Illustrative sequence, not a detection-speed demonstration. Capabilities and notification channels depend on the selected equipment, platform and agreed response workflow.
Distinguish presence from identity
Detecting that a vehicle is present is different from recognising a number plate, identifying a particular vehicle or deciding whether it is authorised. Vehicle categories also vary between platforms. A system that supports a general vehicle class may not reliably distinguish every truck, motorcycle, bicycle or specialist industrial vehicle in all conditions.
Confirm the actual supported function before choosing the equipment and message wording.
For a yard entrance, the requirement may simply be to notify the operations team of an arrival during specified hours. At a restricted route, a directional crossing rule may be more useful. A loading area may need a dwell condition or an occupancy indication.
These should be separate, clearly named rules so an operator can understand why an event has been raised.
Design around the lanes and camera view

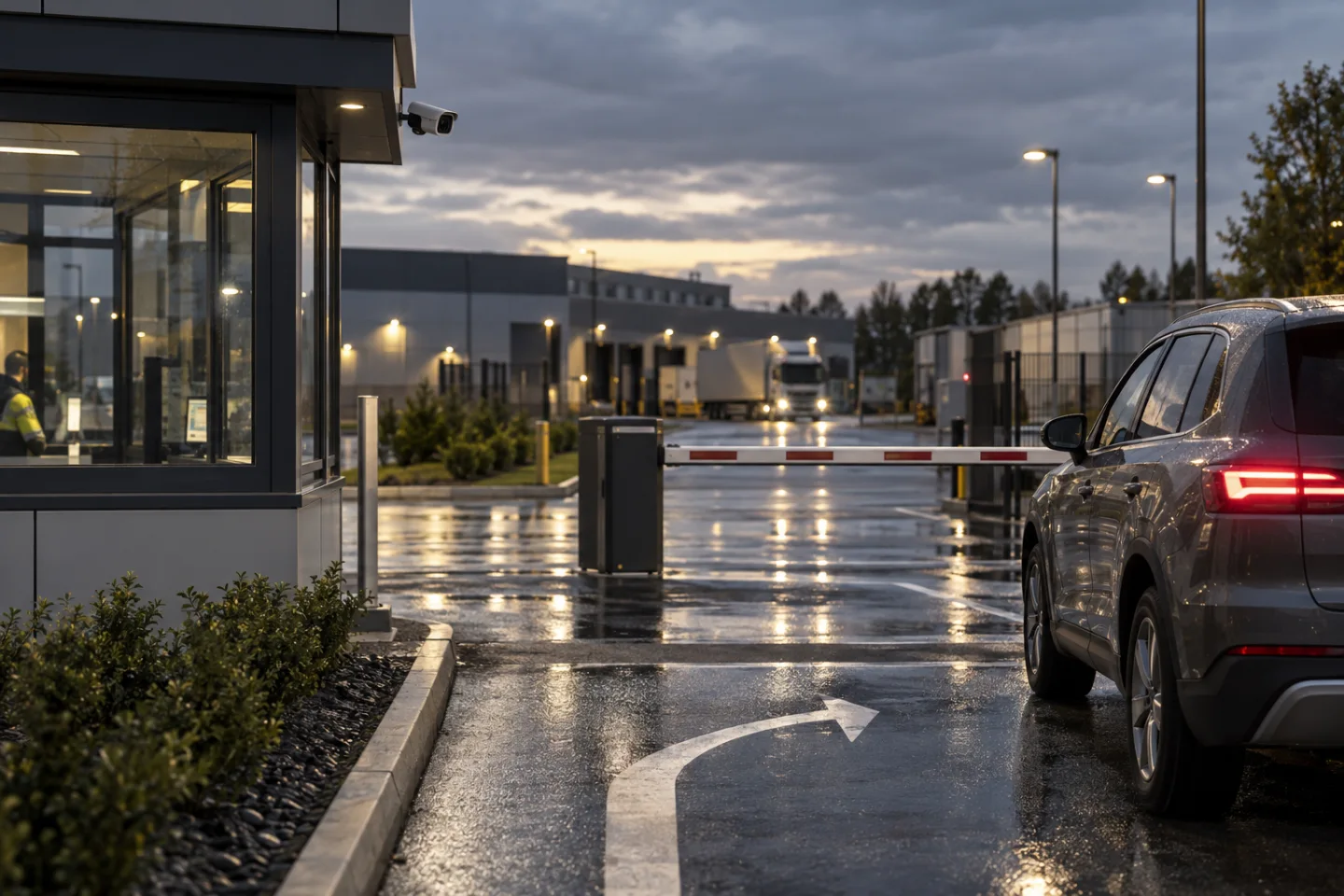

The installation should consider lane geometry, vehicle approach, speed, lighting, distance and obstructions. A broad overview camera may provide good context while a different position is needed for a particular analytics rule. Headlights, shadows, rain, close vehicle spacing and partially hidden vehicles can affect the scene.
The chosen platform's guidance and representative site testing should inform the final configuration.
Pedestrian routes and operational safety boundaries should remain clear in the physical site design. Video analytics is not a substitute for suitable traffic management, barriers, signage, training or required safety systems. A camera event can support awareness of a configured condition, but it should not be promoted as guaranteeing collision avoidance or safe separation of people and vehicles.
Use events to support operations

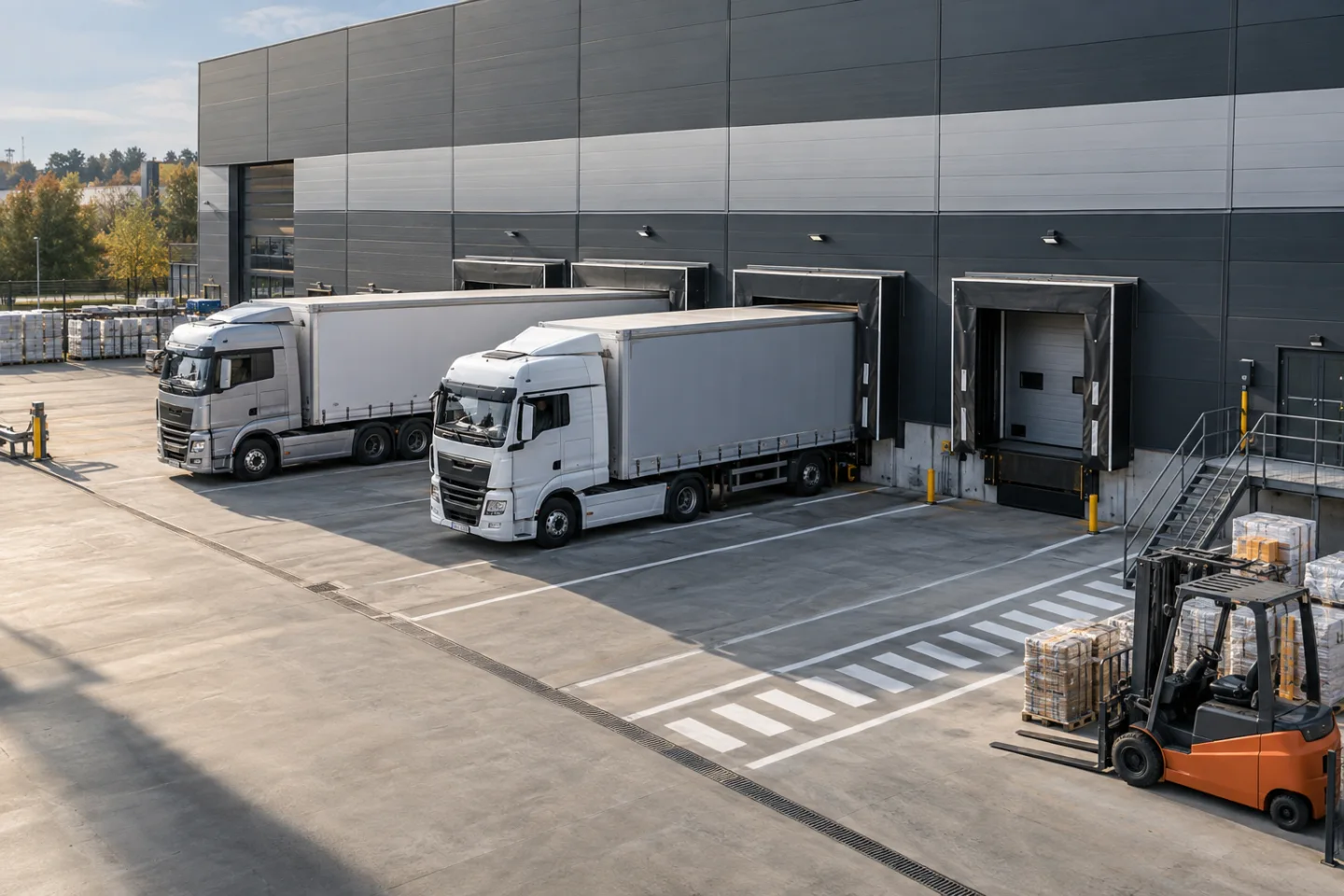

A warehouse team may want an arrival notification at a delivery gate or awareness of movement in a defined yard zone. Retail or office facilities may monitor a service road outside normal delivery hours. Industrial sites may need events from a controlled route or loading area, and remote locations may use a suitable sensor or camera to help an off-site team review site activity.
For a multi-site programme, agree consistent meanings for arrival, crossing, dwell and occupancy events. A threshold suitable for one entrance may not suit another with different traffic patterns. Central reporting should preserve the location and rule context rather than combining unlike events into a misleading total.
The receiving team should be able to distinguish routine operational demand from a condition requiring security review.
Route the event to a useful destination
A compatible analytics application may generate metadata, an image reference or a video clip alongside the time and location. The event can be delivered to a VMS or monitoring dashboard and, where supported, to an app, email or text/SMS workflow.
A control room may receive the event with an assigned priority and acknowledgement requirement. Notification channels and service availability must be confirmed during the integration design.
Gate control, traffic lights, local sounders or other alarm outputs are separate interfaces with potential operational consequences. They should not be assumed safe or available simply because the analytics detects a vehicle. An operator may instead review the event and coordinate access through an established process.
Any automatic action requires a defined authority, fail behaviour and acceptance test appropriate to the equipment involved.
Verify performance in representative traffic
Commissioning should include the relevant vehicle types, directions, expected speeds and lighting periods. Test unwanted events as well as intended ones, and check that the receiving team gets enough context to act. Confirm how the platform handles repeated events, a vehicle stopping on a boundary, a lost video feed and a failed communications path.
Keep camera alignment, mounting, lens cleanliness and rule configuration under review as traffic routes or site layouts change. Access to recorded images, retained event data and administration functions should be controlled. IS Security can scope the camera or sensor installation, network infrastructure and event integration around the site's operational requirement, with the distinction between awareness, identity, access decisions and safety controls made explicit.
From a possible event to a useful response.
Vehicle route → zone rule → logistics review. Open each stage to explore its role. This is an illustrative workflow; it does not analyse live footage or send notifications.
01 / OBSERVEYard / entrance camera
The monitored condition is: vehicle enters a defined route or zone. Select the device, field of view and installation position for this specific task. Record obstructions, lighting, power and maintenance requirements before relying on the event stream.
02 / INTERPRETVehicle classification + zone analytics
Apply direction, dwell and operating schedule. The selected platform must support the intended event and expose a usable interface. Test representative events and unwanted triggers; an analytics output is a candidate for review, not proof of what happened.
03 / CONNECTLAN → firewall → secure platform
Carry authorised event data through the local switch or sensor gateway and an approved network path. Size bandwidth for any accompanying clip. Protect accounts and interfaces, supervise connection loss and agree retry behaviour where the platform supports it.
04 / RESPONDGatehouse / logistics operations
Deliver the location, event type and time to the agreed recipient. A person verifies the available context, follows the site response procedure and records the outcome. Delivery, acknowledgement and resolution are different states and should be reviewed separately.
Where supported by the selected camera, sensor, VMS or analytics platform. Safety-related analytics provide supplementary operational awareness and do not replace dedicated certified fire or life-safety systems where required. The final design must define the equipment, event interfaces and responsible response team.
Reach the people who can act.
Available outputs depend on the selected platform, licences and agreed integrations. Open a channel for practical delivery considerations.
Send event context and a secure review link to an authorised mailbox where supported. Agree recipients and inbox monitoring; acceptance by a mail server does not confirm that a person has read or acted on the message.
Text / SMS
Use a supported gateway or monitoring integration for concise location and priority messages. Confirm service availability, costs and delivery reporting. Sensitive footage should stay within the authorised platform rather than an unrestricted text message.
Mobile apps
A supported application can present event details and acknowledgement controls to authorised users. Test notification permissions, connectivity and out-of-hours coverage. A silenced or offline handset needs a planned alternative recipient or escalation route.
Alarm outputs
A compatible interface may trigger an approved operational sounder, relay or indicator. Define supervision, reset behaviour and responsibility. Do not connect analytics directly to hazardous equipment or alter certified safety functions without the appropriate engineered design.
Control room / monitoring platform
Route supported events into the operator workflow with a consistent site identifier and priority. Give reviewers enough context to distinguish an actionable event from an unwanted trigger, with access restricted to their responsibilities.
Escalation & event review
Define who receives an unacknowledged event, how long the initial team has to respond and how closure is recorded. Review failed deliveries, recurring unwanted alerts and staffing gaps alongside the detection rules.
Plan the complete monitoring chain.
Start with the event, the operating environment and the person responsible for responding. Share existing equipment details, site plans and integration requirements with the technical team.
